  1. Physical Hardware

Macaroni

Tool
Tunnel Address
Internal Address

Proxmox VE

Proxmox Backup

Specifications

Component
Model

Case

Silverstone Alta G1M White (Planned PowerMac G4 swap)

Motherboard

MSI B660M Pro

CPU

i5 13500

CPU Cooler

Noctua NH-U9

RAM

4x32GB Vengeance LP, 3200mhz

GPU

Quadro P4000

Power Supply

Corsair 600w SFX

Storage

2x NVME 2TB SDD (T-Create Classic) - Server Storage

2x SATA 4TB HDD (WD Green) - Backup Storage

1x SATA 500GB SSD (Crucial MX500) - Boot Drive 1x SATA 240GB SSD (Crucial BX500) - Cache Drive

Other

HomeAssistant SkyConnect dongle ZWave Dongle

ZFS Storage Pools

Name
Type
Drives
Purpose

SSDRAID

ZFS, MIRROR

2x 2TB NVME

VM Disk storage

HDD-MIRROR

ZFS, MIRROR

2x 4TB HDD

Backup storage

Images

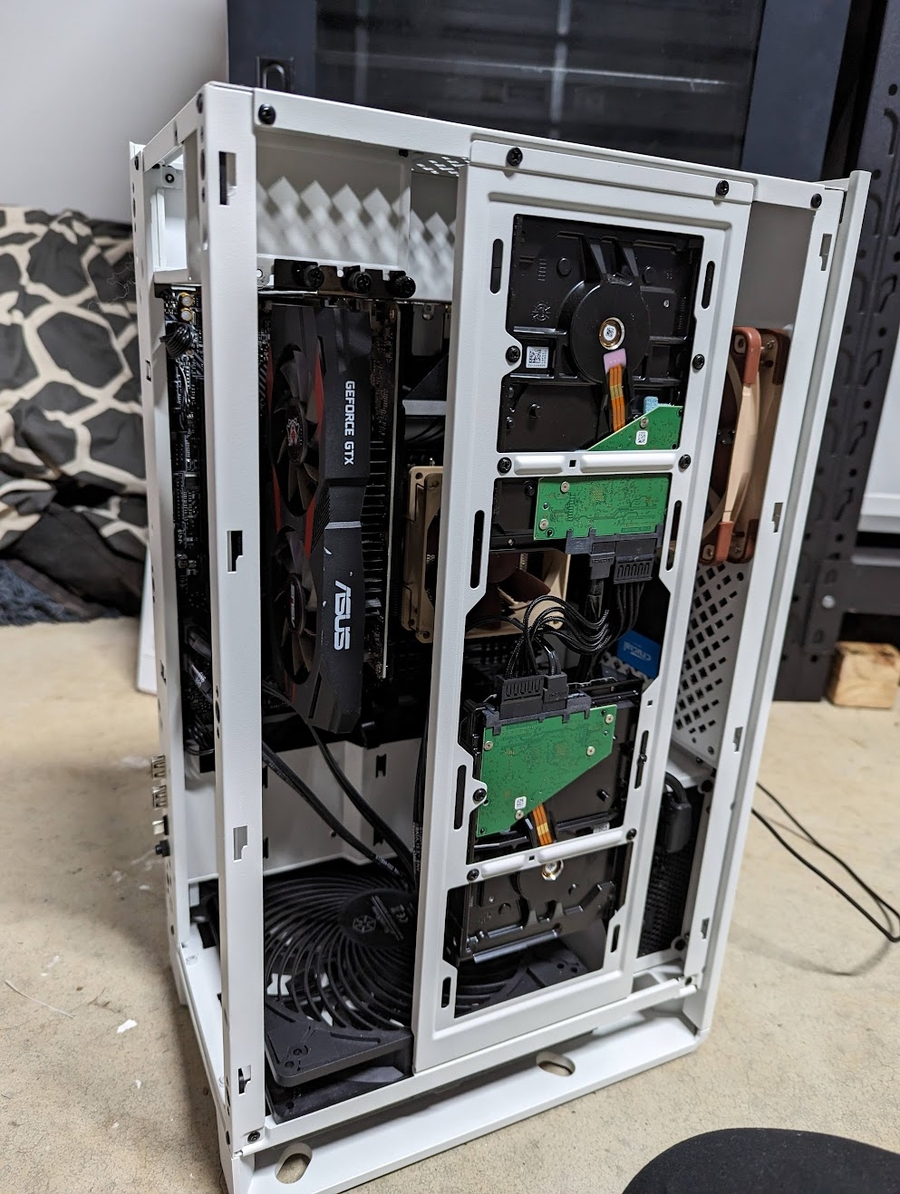

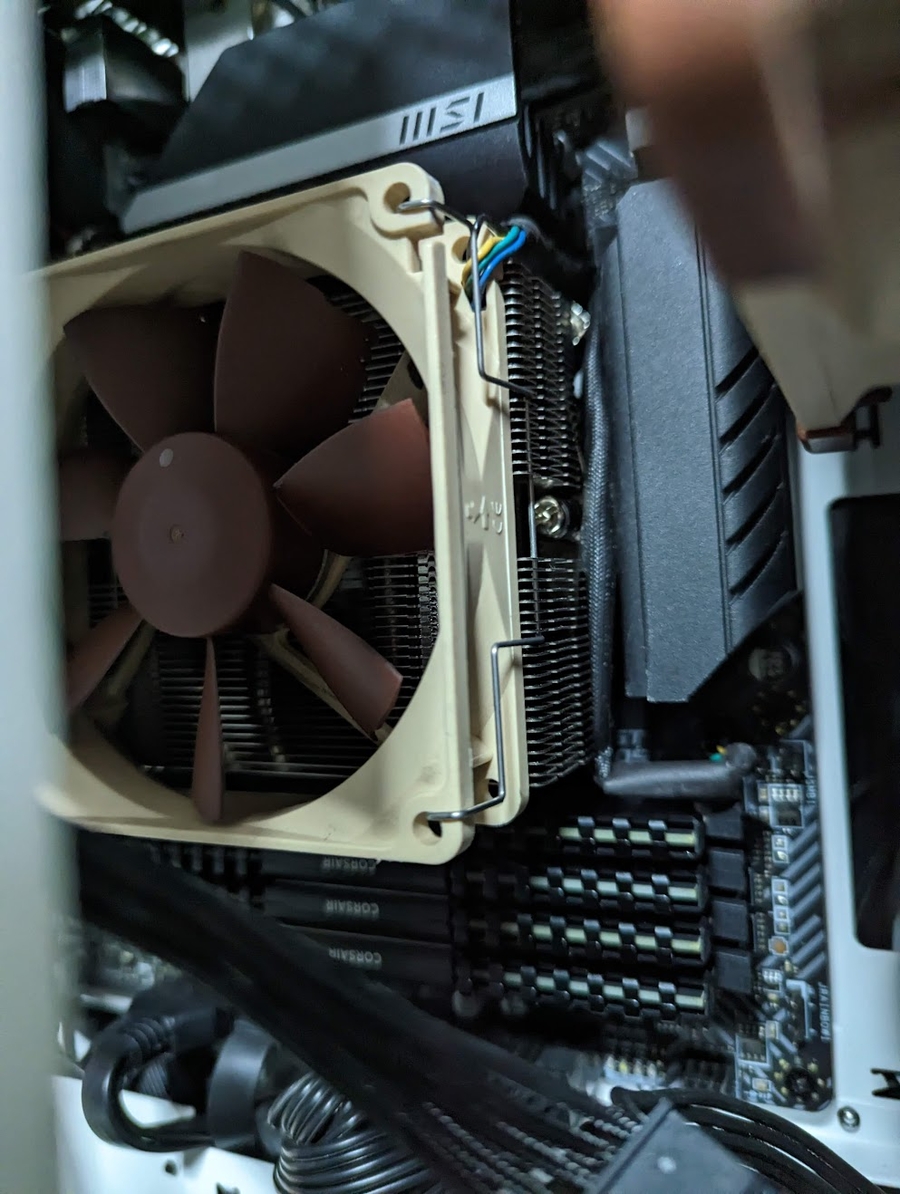

Images of the server below. Please note: These pictures will span multiple iterations so they hardware may look different between images

Early 2023

Late 2023
